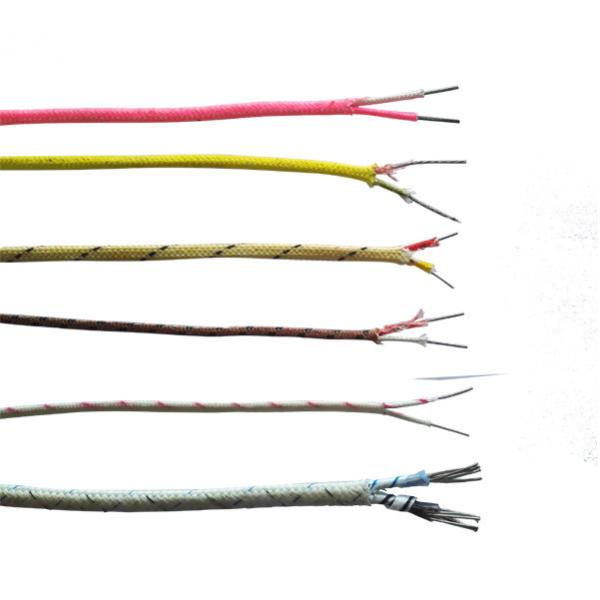

Customized Insulated Thermocouple Extension Cable / Compensation Cable ANSI Code

Brand Name : OHMALLOY

Model Number : K-HP-302

Certification : ISO9001-2008

Place of Origin : China(Shanghai)

MOQ : 100 meters

Price : negotiable

Payment Terms : L/C, T/T, Paypal,, D/P, D/A

Supply Ability : 500000 meters per month

Delivery Time : 7-10 days

Packaging Details : 100m/spool, 305m/spool, 1000ft/spool, 1000m/spool

Material : Chromel,Alumel

Insulation : FEP.PVC. Fiberglass, PTFE, silicon rubber

Diameter : 0.05-12mm

Color : ANSI code, IEC code, GB/T standard

Contact Now

Professional and customized insulated thermocouple extension or compensation cable

OHMALLOY cable factory have 30 years in producing the thermocouple extension or compensation cable. We use our own thermocouple conductor to produce all kinds of insulated thermocouple wire and cable, Resistance Temperature Detector (RTD) cables. Working temperature range is -60℃ to +1100℃. According to customer request, we supply professional wire and cable solution.

Now OHMALLOY have all processing matching for braiding, extruding, wrapping, varnishing.... So we can make all cable with all insulation such as PVC, PTFE, Silicone rubber, fiberglass,

The MOQ for fiberglass insulated wire can be any length, even 5meters is ok.

For the insulation such as PVC, PTFE, we can supply 500meters as MOQ. That can help many customers on trial stage.

Customer select and combine table:

Type Core

Cross-Section

AWG Number x diameter

(mm2) (mm)

 Insulation material Shield Jacket material

SC

RC

BC

KCA

KCB

KX

NC

NX

EX

JX

LX

Single pair

Multi-pair

Multi core,

no pair

0.07 1x0.30

0.22 24 7x0.20

0.35 22 5x0.30

0.40 21 13x0.20

0.50 20 7x0.30

0.60 20 19x0.20

0.75 19 7x0.37

0.75 19 24x0.20

1.00 18 14x0.30

1.00 18 24x0.20

1.34 16 7x0.49

1.34 16 19x0.30

1.50 16 7x0.52

1.50 16 21x0.30

2.00 14 19x0.366

2.00 14 28x0.30

2.50 13 19x0.41

2.50 13 36x0.30

Ceramic fiber(-60,+1200°C)

Vitreous Silica(-60,+800°C)

Mica(-60,+650°C)

Silica Fiber(-60,+1000°C)

High temperature fiber (-60,+600°C)

Fiberglass (-60,+450°C)

Polyimide tape / Kapton (-60,+260°C)

PTFE(-60,+275°C)

PFA(-60,+275°C)

FEP(-60,+205°C)

Silicone Rubber(-60,+200°C)

PVC (-25,+105°C)

PVC(-25,+70°C)

Nickel Chrome alloy

wire braid

stainless steel braid

tin-plated

copper braid

Aluminum-plastic

tape wrap

Copper tape wrap

Aluminum foil wrap

Ceramic fiber(-60,+1200°C)

Vitreous Silica(-60,+800°C)

Mica(-60,+650°C)

Silica Fiber(-60,+1000°C)

High temperature fiber (-60,+600°C)

Fiberglass (-60,+450°C)

Polyimide tape / Kapton (-60,+260°C)

PTFE(-60,+275°C)

PFA(-60,+275°C)

FEP(-60,+205°C)

Silicone Rubber(-60,+200°C)

PVC (-25,+105°C)

PVC(-25,+70°C)

Type conductor material 100℃ 200℃ EMF(μV) Value tolerance
EMF(μV) EMF(μV) IEC 584-2 ASTM E230
Positive Negative Standard Standard Grade I Grade II Special I Standard 2
SC SPC(Cu) SNC(CuNi0.6) 645 1440 ±30(±2.5℃) ±60(±5.0℃) ±30(±2.5℃) ±60(±5.0℃)
RC RPC(Cu) RNC(CuNi0.6) 645 1440 ±30(±2.5℃) ±60(±5.0℃) ±30(±2.5℃) ±60(±5.0℃)
KCA KPCA(Cu) KNCA(CuNi42) 4095 8137 ±60(±1.5℃) ±100(±2.5℃) ±45(±1.1℃) ±90(±2.2℃)
KCB KPCB(Fe) KNCB(CuNi40) 4095 8137 ±60(±1.5℃) ±100(±2.5℃) ±45(±1.1℃) ±90(±2.2℃)
KX KPX(Chomel) KNX(Alumel) 4095 8137 ±60(±1.5℃) ±100(±2.5℃) ±45(±1.1℃) ±90(±2.2℃)
NC NPC(Fe) NNC(CuNi18) 2774 5912 ±60(±1.5℃) ±100(±2.5℃) ±45(±1.1℃) ±90(±2.2℃)
NX NPX(NiCrSi) NNX(NiSi) 2774 5912 ±60(±1.5℃) ±100(±2.5℃) ±45(±1.1℃) ±90(±2.2℃)
EX EPX(NiCr10) ENX(CuNi45) 6317 13419 ±120(±1.5℃) ±200(±2.5℃) ±65(±1.0℃) ±115(±1.7℃)
JX JPX(Fe) JNX(CuNi45) 5268 10777 ±85(±1.5℃) ±140(±2.5℃) ±65(±1.1℃) ±120(±2.2℃)
TX TPX(Cu) TNX(CuNi18) 4277 9285 ±30(±0.5℃) ±60(±1.0℃) ±30(±0.5℃) ±60(±1.0℃)
LX LPX (Fe) LNX(CuNi) 5370 10950 GOST standard
±85(±1.5℃) ±140(±2.5℃)
LX LPX(NiCr10) LNX(CuNi) 6950 14660 GOST 492 @100℃ GOST 492 @200℃
±140 ±250 ±180 ±300


Cable color standard:

Customized Insulated Thermocouple Extension Cable / Compensation Cable ANSI Code

Payment&Shipping:

Customized Insulated Thermocouple Extension Cable / Compensation Cable ANSI Code

FAQ:

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
